| Product Configuration |
Feet
| 16FT |
| Overall Size | 6255(L)*2200(W)*2310(H)/mm |

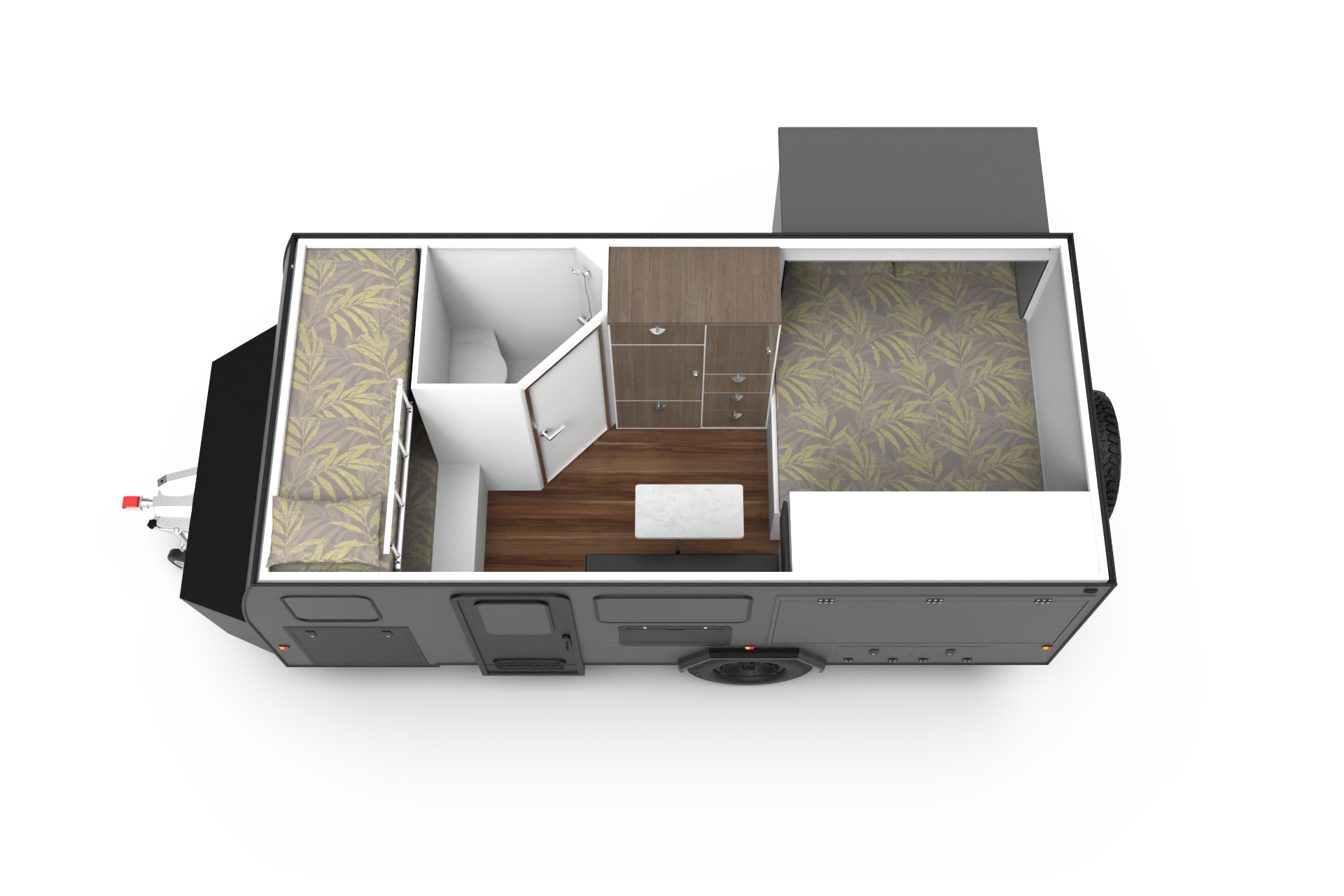

| Inner Body size | 4700(L)*2100(W)*1630(H)/mm |
| Tent open Height | 2880mm |
| Berth | 4 berths |
| Tare Mass | 2550kg |
| Chassis | One-piece welded and fully hot dipped galvanized chassis with tar paint.
|
| Drawbar(A-Frame) | 3MM thick Q345 steel square tube A-frame |
| Hitch | Au poly hitch or USA 2 Inches hitch is standard. |
| Stabilizer legs | 4*drop down heavy duty fully adjustable stabilizer legs+ 10 inch heavy duty swing up jockey wheel. |
| Suspension | Heavy duty 2* independent suspension with dual shock absorber |
| Wheels &Tyres | 3 * Off-road 265/75R16tyres with 6 stud aluminum alloy rim |

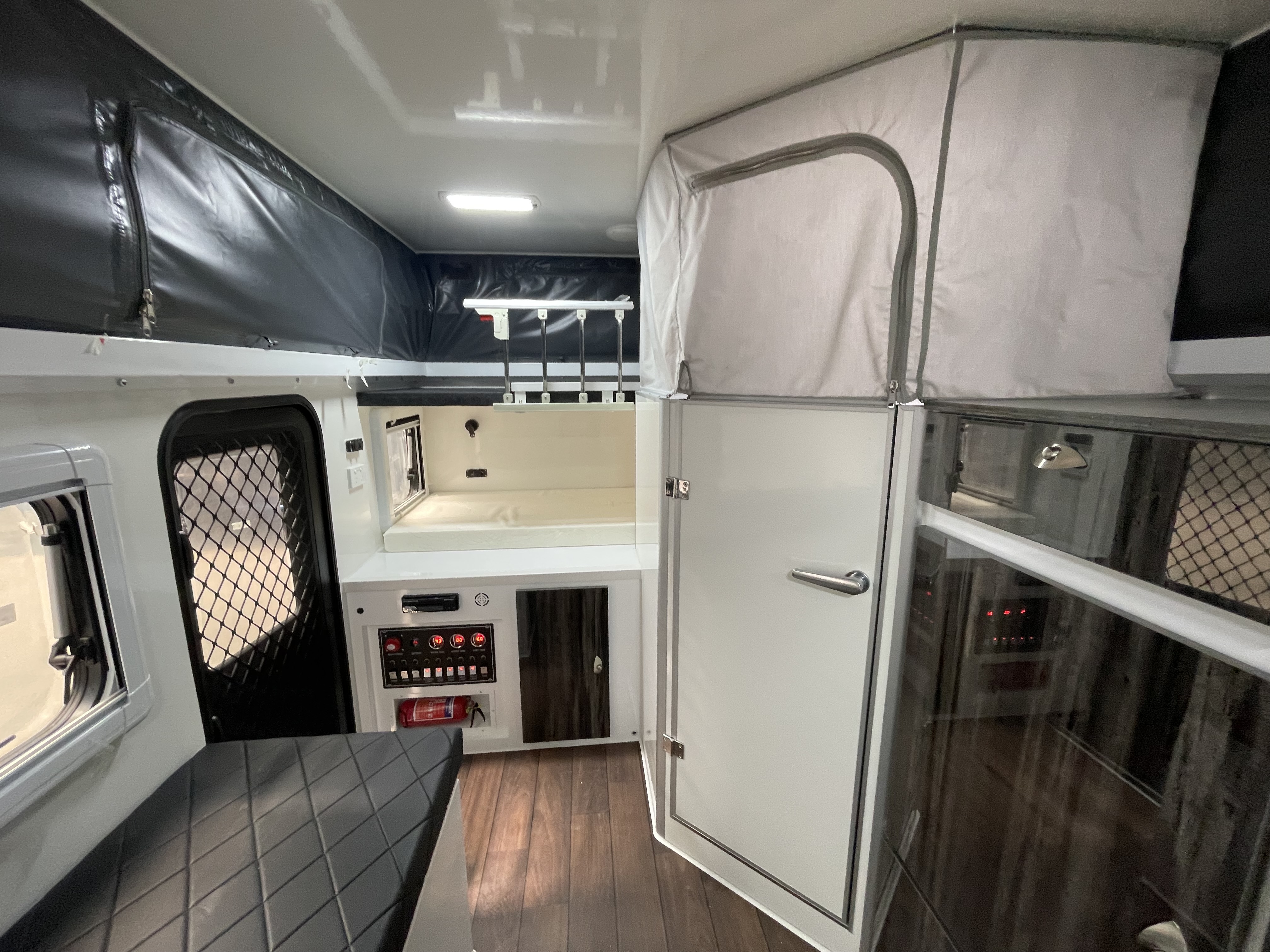

| Washroom | Hot and Cold water Shower& Tap & Thetford toilet (C-402 Model) |
| Kitchen System | Slide out food grade 304 stainless steel kitchen cook tops with sink and 4* stove burners Cooktop with S/S sink and hot and cold water fauce |
| Water System | 120L+80L 304 Food grade plastic water tank 45L~50L Food grade plastic water tank Truma gas-electric hot water heater(Truma 14L) Use CE standard 12V diaphragm pump. |
| Electric System | 30Amp DC charger.(Charge the battery) Inverter 2000W(12V DC Convert to 230V Or 110V) Fully submersible LED lights. Over bed reading light.Rear brake lights, Turning lights, License plate light, Side light |
